Copper Wire-Metal Wire-Products-Xinxiang Bashan Aviation Technology Co., Ltd.

Current location：Home >Metal Wire

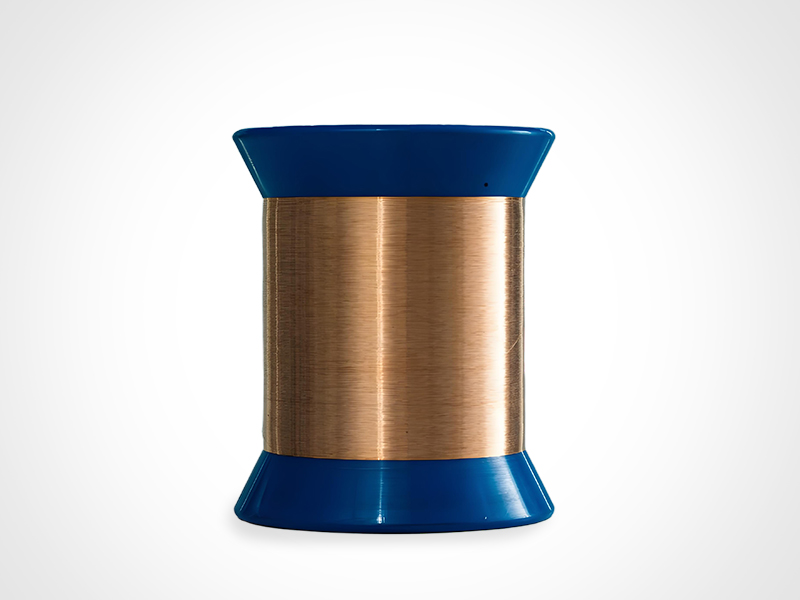

Copper Wire

Brass Wire (H80)：

Golden appearance, excellent ductility, ideal for decorative mesh and textile fabrics.

Phosphor Bronze Wire:

High strength, wear resistance, and fatigue resistance, commonly used in industrial mesh and functional fabrics.

Custom solutions available upon customer request

Product Overview

Bashan copper wire covers a diameter range of 0.02mm – 1.0 mm, mainly made from brass (H80) and phosphor bronze. With excellent ductility, strength, and corrosion resistance, our copper wire is widely used in wire mesh weaving, textile fabric.

Materials & Properties

Brass Wire (H80): It has a golden color and excellent ductility, making it suitable for weaving decorative mesh fabrics and textiles.
Tin Bronze Wire: It features wear resistance, fatigue resistance and high strength, and is widely used in industrial mesh weaving and functional textiles.s, as well as in electronics, filtration, and decorative applications.

Product Parameters

Brass Wire (H80) Diameter tolerance and mechanical properties

Wire diameter （d/mm）	Diameter tolerance （mm）	Tensile strength（N/mm²）	Elongation≥（%）
1.80～2.00	±0.030	330～370	38
1.12～1.60	±0.020	330～370	38
0.71～1.00	±0.015	340～380	38
0.45～0.63	-0.006～+0.010	340～390	35
0.315～0.40	-0.005～+0.008	350～390	35
0.180～0.280	-0.004～+0.007	350～390	32
0.112～0.160	-0.003～+0.005	350～390	32
0.071～0.100	±0.003	350～430	29
0.050～0.063	±0.002	360～430	24

Tin Bronze Wire Diameter tolerance and mechanical properties

Wire diameter（d/mm）	Diameter tolerance（mm）	Tensile strength（N/mm²）	Elongation≥（%）
1.8	±0.030	400～470	45
1.12～1.60	±0.020	400～470	45
0.71～1.00	±0.015	400～480	45
0.45～0.63	±0.010	410～480	45
0.315～0.40	±0.008	410～480	45
0.180～0.280	±0.006	410～480	45
0.112～0.160	±0.004	410～490	45
0.071～0.100	±0.003	420～510	45
0.045～0.063	±0.002	420～510	36
0.036、0.040	±0.002	420～510	32
0.028～0.032	±0.0015	420～530	32
0.020～0.025	±0.0015	420～530	28

类型：双锥斜排线轴 Wire diameter and Cylindrical Barrelled Delivery
Model	Wire Dia.	d1	d2	d3	L1	L2	Capacity Max. kg
HK63/45/16	0.015～0.018	63	44	16	85	60	0.3
HK80/45/16	0.02～0.07	80	55	16	100	70	0.8
HK80/45/20	0.02～0.07	80	55	20	100	70	0.8
HK100/59-160	0.02～0.07	100	75	59	160	92	2
HK100/25-160	0.02～0.07	100	75	25	160	92	2
HK115	0.02～0.07	115	90	25	138	75	2

类型：双直排线轴 Wire diameter and Biconical spool
Model	Wire Dia.	d1	d2	d3	L1	L2	Capacity Max. kg
DIN80-16	0.02～0.07	80	50	16	80	64	0.8
DIN80-20	0.02～0.07	80	50	20	80	64	0.8
DIN100	0.08～0.15	100	63	16	100	80	1.5
DIN125	0.08～0.15	125	80	16	125	100	3
DIN160	0.15～0.5	160	100	22	160	128	6
DIN200	0.2～0.6	200	125	22	200	160	13

Metal Wire Production Process

Precision Drawing·Annealing·Excellence in Every Strand

Please feel free to email us：arvin540@foxmail.com

Click to learn more about our production process

Recommended Applications

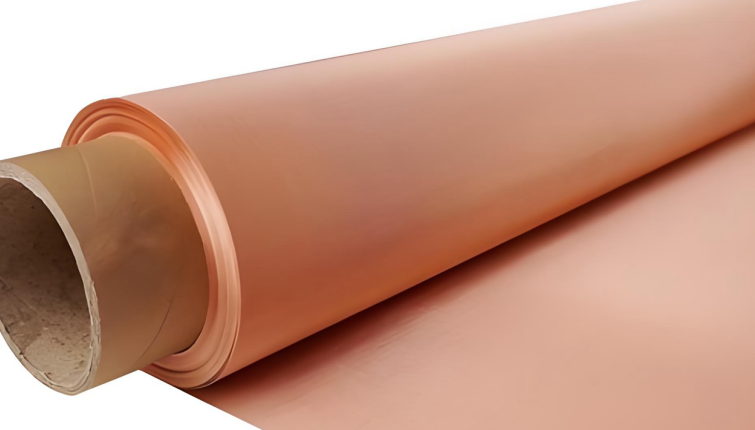

Wire Mesh Weaving: Filter mesh, sieving mesh, decorative mesh
Textile Fabrics: Functional fabrics, protective clothing
Electronics & Precision Parts: Connectors, precision elastic components
