Nickel Wire-Metal Wire-Products-Xinxiang Bashan Aviation Technology Co., Ltd.

Current location：Home >Metal Wire

Metal Wire

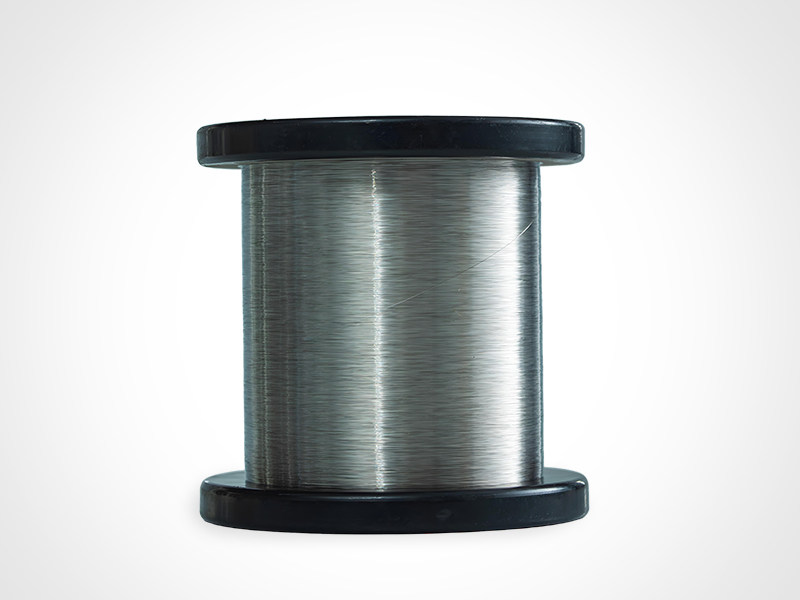

Nickel Wire

Excellent Corrosion Resistance:

Suitable for harsh alkaline and acidic environments

High Temperature Stability:

Operates reliably above 600°C

Superior Ductility and Toughness:

Ideal for further processing and weaving applications

High Purity and Stability:

Ensures long-term performance reliability

Custom solutions available upon customer request

Product Overview

Bashan supplies Nickel Wire with diameters ranging from 0.025–1.0 mm, manufactured from premium nickel materials through precise cold drawing and heat treatment processes. Nickel wire features excellent corrosion resistance, high-temperature stability, and outstanding ductility, making it ideal for demanding applications such as alkaline water electrolysis for hydrogen production and aerospace filtration.

Product Parameters

Nickel Wire Diameter tolerance and mechanical properties

Wire diameter（d/mm）	Diameter tolerance（mm）	Tensile strength（N/mm²）	Elongation≥（%）
1.8	±0.030	400～470	25
1.12～1.60	±0.020	400～470	25
0.71～1.00	±0.015	400～470	25
0.45～0.63	±0.010	400～470	25
0.280～0.40	±0.008	400～470	22
0.180～0.250	±0.006	400～470	22
0.112～0.160	±0.004	380～450	19
0.071～0.100	±0.003	370～450	17
0.045～0.063	±0.002	370～500	16
0.036、0.040	±0.002	370～500	16
0.030、0.032	±0.002	370～500	15
0.025	±0.002	370～500	13

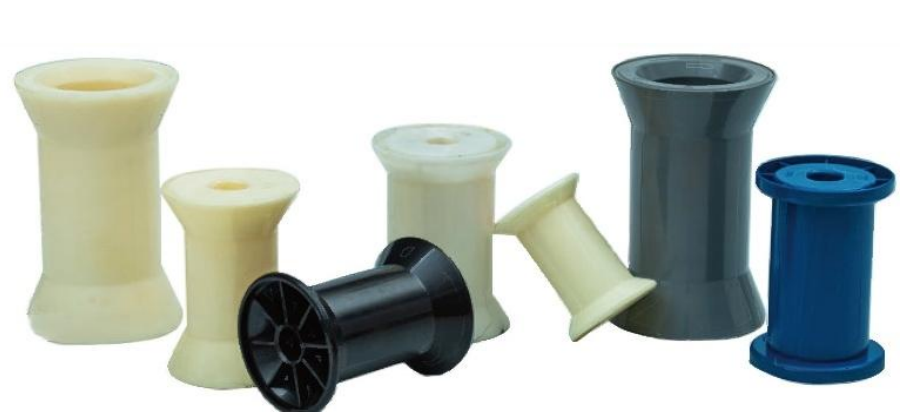

类型：双锥斜排线轴 Wire diameter and Cylindrical Barrelled Delivery
Model	Wire Dia.	d1	d2	d3	L1	L2	Capacity Max. kg
HK63/45/16	0.015～0.018	63	44	16	85	60	0.3
HK80/45/16	0.02～0.07	80	55	16	100	70	0.8
HK80/45/20	0.02～0.07	80	55	20	100	70	0.8
HK100/59-160	0.02～0.07	100	75	59	160	92	2
HK100/25-160	0.02～0.07	100	75	25	160	92	2
HK115	0.02～0.07	115	90	25	138	75	2

类型：双直排线轴 Wire diameter and Biconical spool
Model	Wire Dia.	d1	d2	d3	L1	L2	Capacity Max. kg
DIN80-16	0.02～0.07	80	50	16	80	64	0.8
DIN80-20	0.02～0.07	80	50	20	80	64	0.8
DIN100	0.08～0.15	100	63	16	100	80	1.5
DIN125	0.08～0.15	125	80	16	125	100	3
DIN160	0.15～0.5	160	100	22	160	128	6
DIN200	0.2～0.6	200	125	22	200	160	13

Metal Wire Production Process

Precision Drawing·Annealing·Excellence in Every Strand

Please feel free to email us：arvin540@foxmail.com

Click to learn more about our production process

Recommended Applications

1、）Nickle Wire Mesh for Hydrogen Production

Nickel wire woven mesh is widely used as electrodes in alkaline electrolyzers, providing excellent corrosion resistance and conductivity for hydrogen production.

2、）Aerospace Filtration

Stable under high-temperature conditions, suitable for aerospace engine filtration and protective systems.

3、）Application of Nickel Wire Mesh in Electromagnetic Shielding

Bashan’s nickel wire mesh offers excellent electrical conductivity, corrosion resistance, and thermal stability.

It can be woven into various mesh types and structures to serve as an effective electromagnetic shielding material, reducing interference and ensuring reliable signal integrity. Common applications include shielding and grounding for electronic devices, precision instruments, and communication systems.
